The integration of cloud, network and terminal, as well as software and hardware, builds a closed loop of smart city applications and empowers the smart upgrade of the city
01
云平台
智慧城市管理平台
智慧照明管理平台
02
网关
路灯集中管理器
智盒“超级网关”
03
路灯控制器
Zigbee路灯控制器
NB-IoT路灯控制器
LoRa路灯控制器
04
智慧灯杆方案
个性化功能定制
传感器、设备集成
05
外设
智能烟感
智能地磁
井盖传感
System Description
+
System Description
+
1. Perception output devices: These are devices responsible for front-end data perception and related output, including lighting fixtures, various sensors, one-button alarm devices, cameras, audio broadcasters, LED screens, and other equipment.
2. Communication control equipment: These are the devices responsible for data acquisition, communication and control of perception output devices. According to environmental and business requirements, industrial routers, Rtus, data acquisition instruments, etc. can be selected.
3. Data instruction flow: The lower end of the communication control device is connected to the sensing output device through interfaces such as RS232 and RS485 to achieve data collection and device control. The communication control equipment communicates with the platform system via 4G or wired to achieve real-time transmission of data and instructions.
System components
+
System components
+

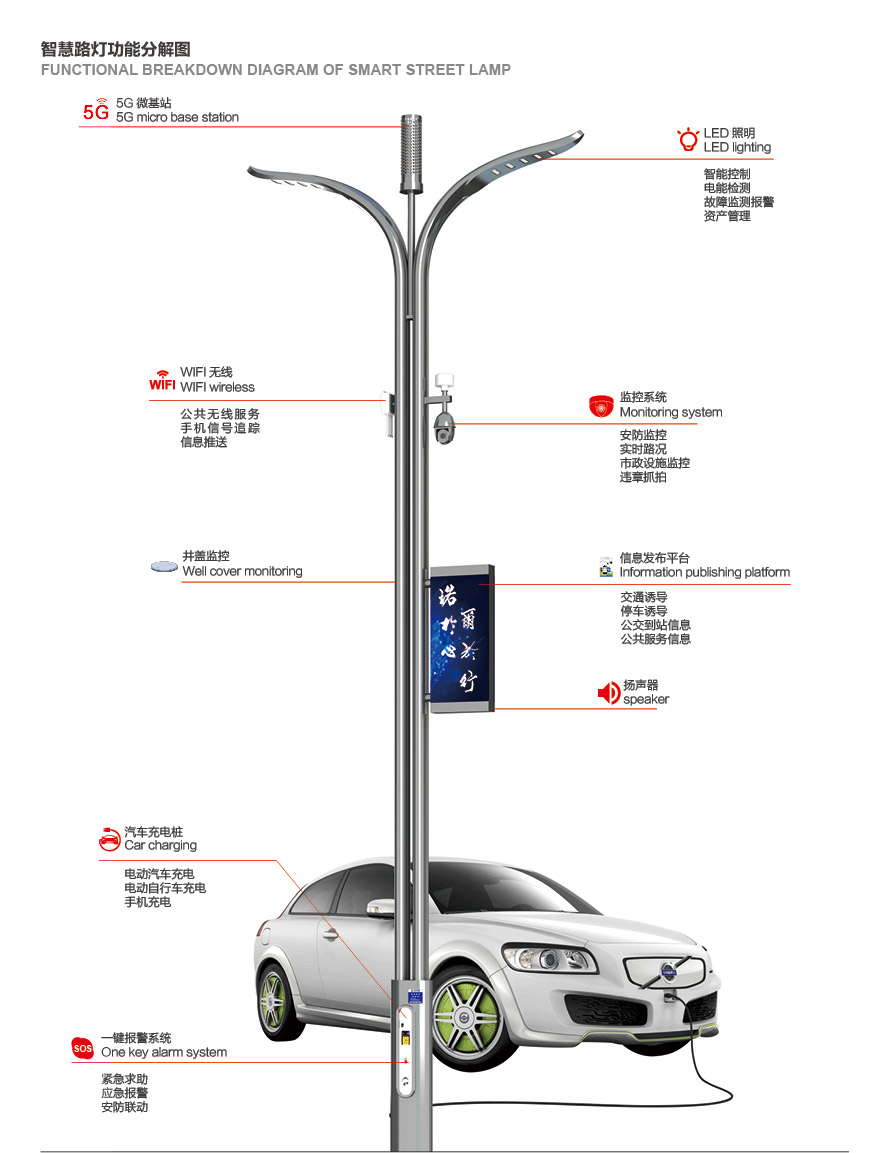

Specific components of the smart multi-functional pole
5G communication helps smart cities and will change various fields such as people's livelihood, healthcare, autonomous driving and industry.
Intelligent single-lamp control can achieve precise management of street lamps. Remote control of street lamps can be realized through PC WEB or mini-programs, including on/off, dimming, color temperature adjustment, timing strategy, adaptive strategy, fault alarm, etc

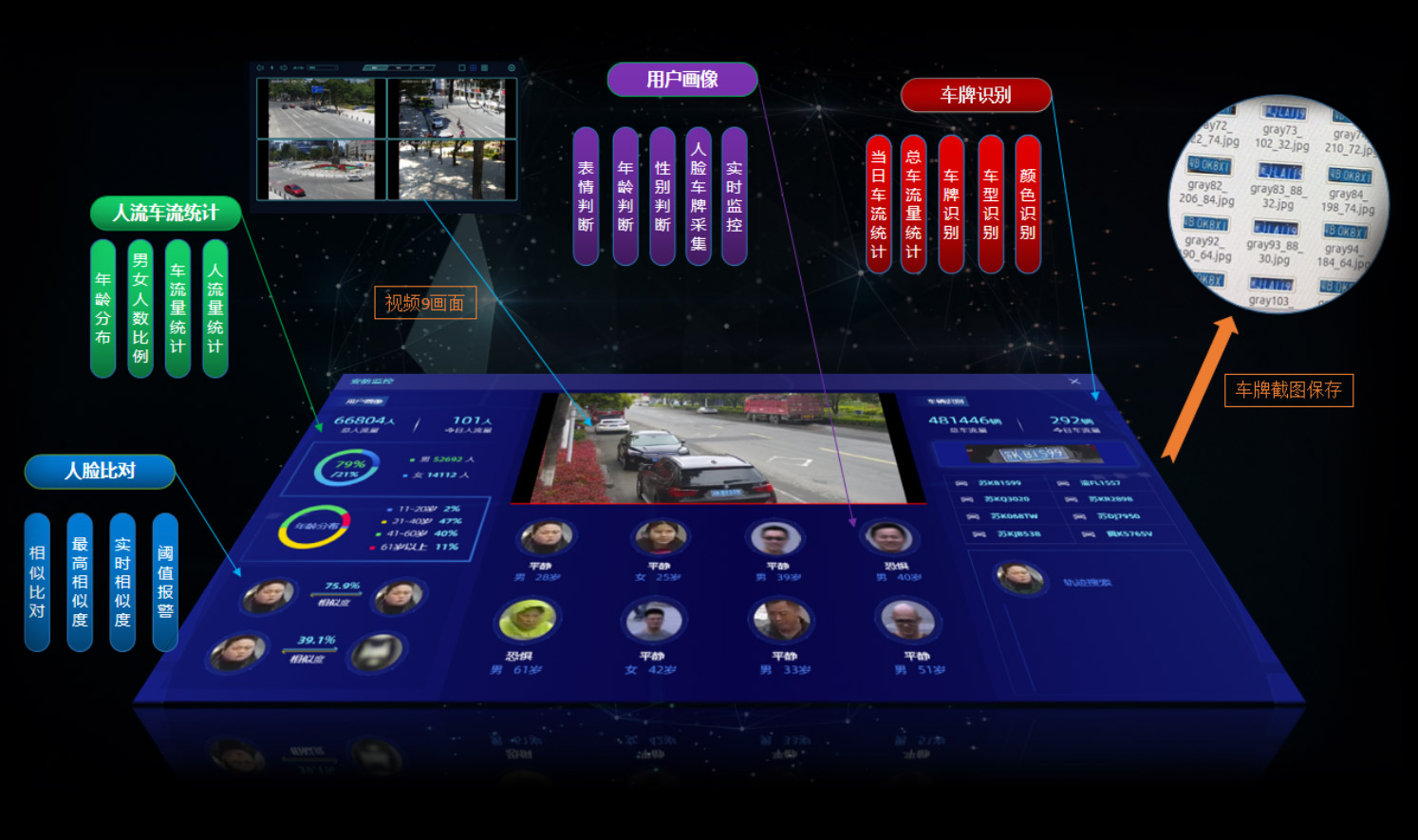

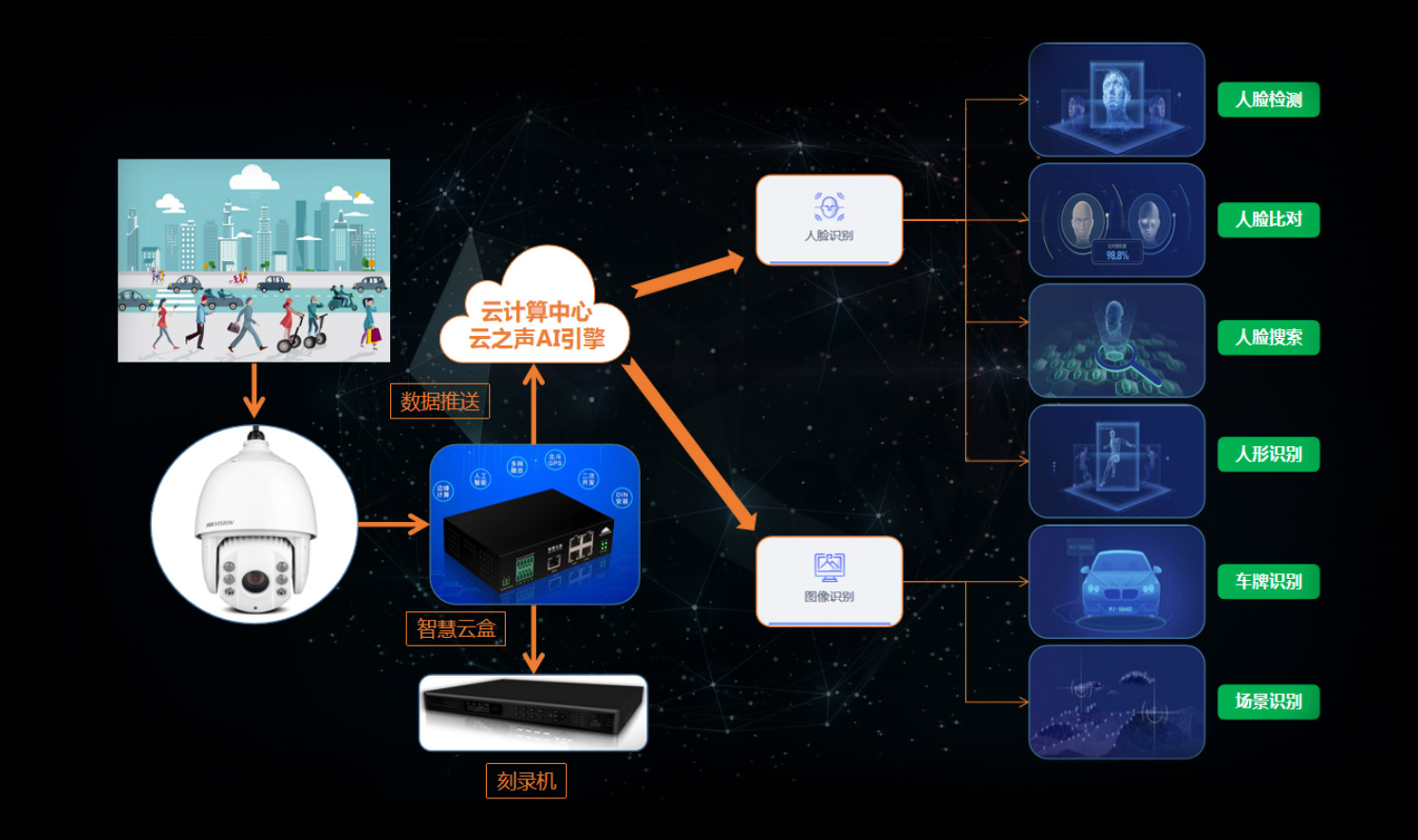

Supports mainstream cameras such as Hikvision and Dahua, supports NVR burning, cloud storage, and supports open-source video stream acquisition. Combined with the Cloud Voice server algorithm, it can achieve powerful AI functions such as license plate recognition, character profiling, and personnel and vehicle flow positioning.
It supports external WIFI AP devices and AC management. Meanwhile, the smart cloud box comes with a built-in WIFI hotspot, which can meet the needs of most scenarios.
Supports unicast, multicast, Shouting, scheduled tasks, and music playback;
High-precision and high-sensitivity environmental sensors, supporting various forms, including louvered weather stations, wall-mounted outdoor sensors, environmental probes, etc., support up to more than ten parameters: temperature, humidity, PM2.5, PM10, noise, CO2, illuminance, wind speed, wind direction, formaldehyde, rainfall, TSP, etc.
P4 high-brightness outdoor LED screen, supporting real-time display of weather station and camera data, supporting simple programs such as text, pictures and videos, supporting complex programs such as timed automatic, and supporting synchronous control.
The embedded rated current is 32A and the output power is 7KW. It features complete protection functions: overvoltage and undervoltage protection, overcurrent protection for AC input and output, output current limiting, overcurrent protection, over-temperature protection, and D-level lightning protection, etc
Embedded visual one-click alarm component, alarm intercom, broadcast announcement, music playback, can be externally connected to the built-in power amplifier sound column, alarm records are stored in the cloud, and the alarm location can be quickly located.
Manhole cover monitoring, RFID anti-theft monitoring, parking management, water level monitoring, energy management, trash can management, etc

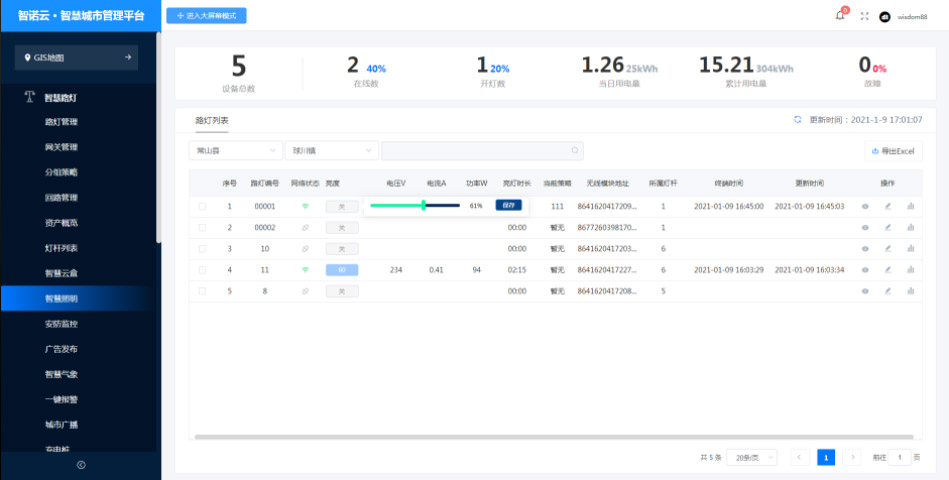

Smart Lighting Management Platform -AI Part I
+
Smart Lighting Management Platform -AI Part II
+
Lighting control system
+
The lighting control system, through the above-mentioned system architecture, mainly realizes the following main functions:
Single-lamp and group control systems: The system offers multiple control methods to enable the setting of on/off lamp schemes. It allows for remote on/off and dimming of individual lamps or groups.
2. Energy-saving control system: Also known as the strategy management system, it defines strategies based on scene requirements (such as: timed execution, event triggering, interval triggering, sunrise and sunset times, etc.), achieving intelligent energy-saving effects and reducing unnecessary lighting time, thereby extending the lifespan of the lamps.
3. Equipment monitoring and alarm: Also known as trigger management, through the Internet of Things monitoring system, it enables "online inspection" of the working status, current, voltage, faults and other information of each lamp, changing the inefficient way of manual inspection and hotline maintenance, and achieving improved maintenance efficiency and reduced operation and maintenance costs. 4. Statistical analysis: This refers to historical data analysis. Based on historical operation data, energy consumption, lighting rate, failure rate, etc. can be analyzed according to business requirements.
Monitoring system
+
Monitoring system
+

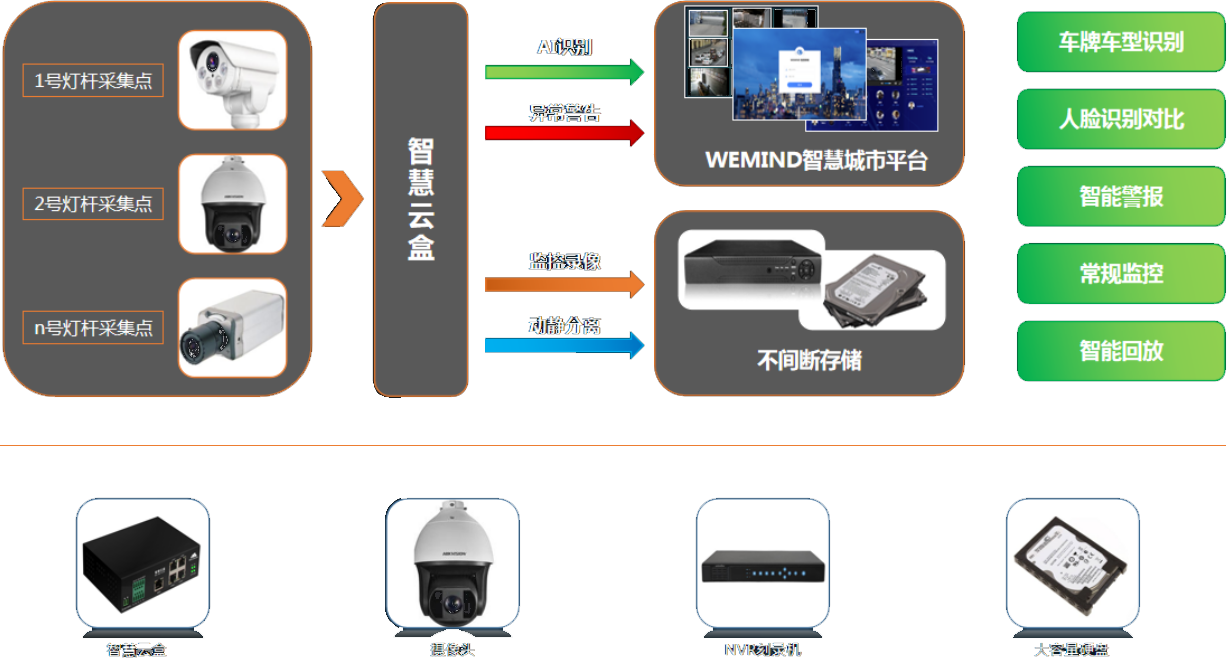

Achieve unified management of cameras. Managers can access real-time videos, control PTZ, replay videos, and remotely store videos through computers or mobile phones.

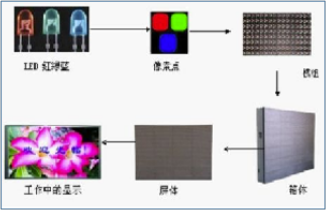

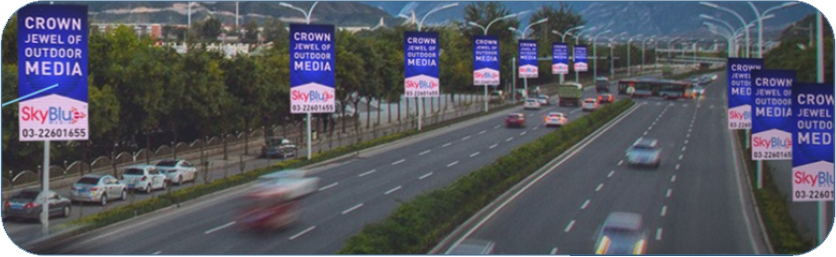

LED display screen system
+
Support the display of real-time monitoring data by sensors such as PM2.5, noise, temperature, etc., providing citizens with real-time environmental information. The platform supports the management of playback materials and can be set with specific rules
Then push text, image and video information, such as venue notifications, policy trends, commercial advertisements, etc.
LED molding
System Function:
· Text, video, audio and image files
· Adaptively publish and play content
· Snapshot confirmation cloud storage and cloud release management
· Regional grouping management
· Targeted push interface
Meteorological information, video information
· Government affairs information, public welfare information

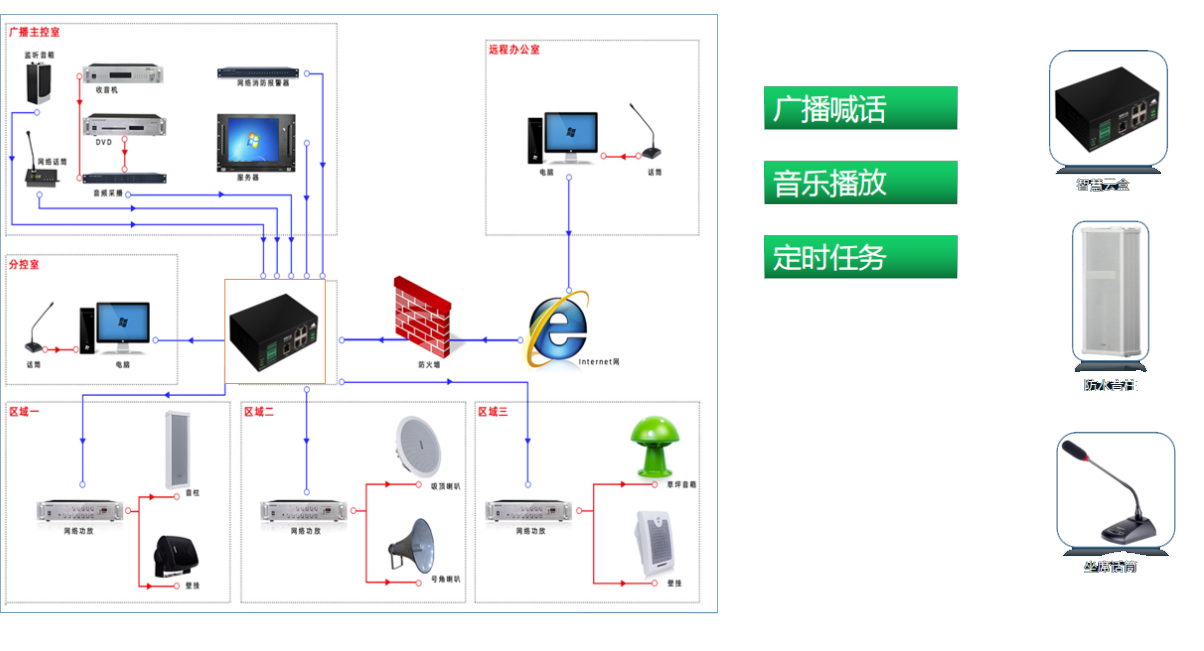

Broadcasting system
+
Broadcasting system
+
The platform supports the management of audio playback materials, intelligent timed playback of background music, radio broadcasts, and notification information, as well as real-time missing person and lost item notices, etc.
One-click alarm
+
One-click alarm
+

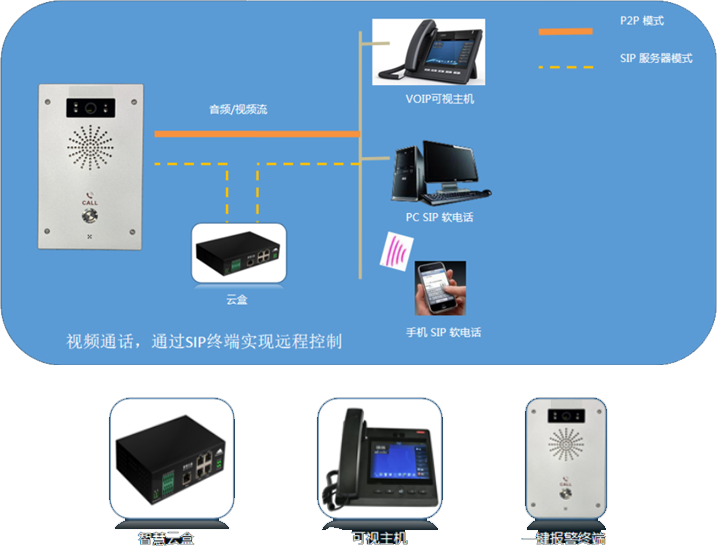

The one-button alarm system, also known as the emergency rescue system, integrates a 2-megapixel high-definition camera, supports the central call front end, and offers functions such as two-way voice intercom and broadcasting, enabling immediate alarm and assistance. The pinhole-type lens is relatively concealed and hard to detect, facilitating monitoring. The casing is made of metal to enhance the explosion-proof level of the equipment.
Under the condition that the police force remains unchanged, provide faster and more effective services to the society, effectively deter criminals and stabilize public sentiment, and play a positive role in maintaining social stability.

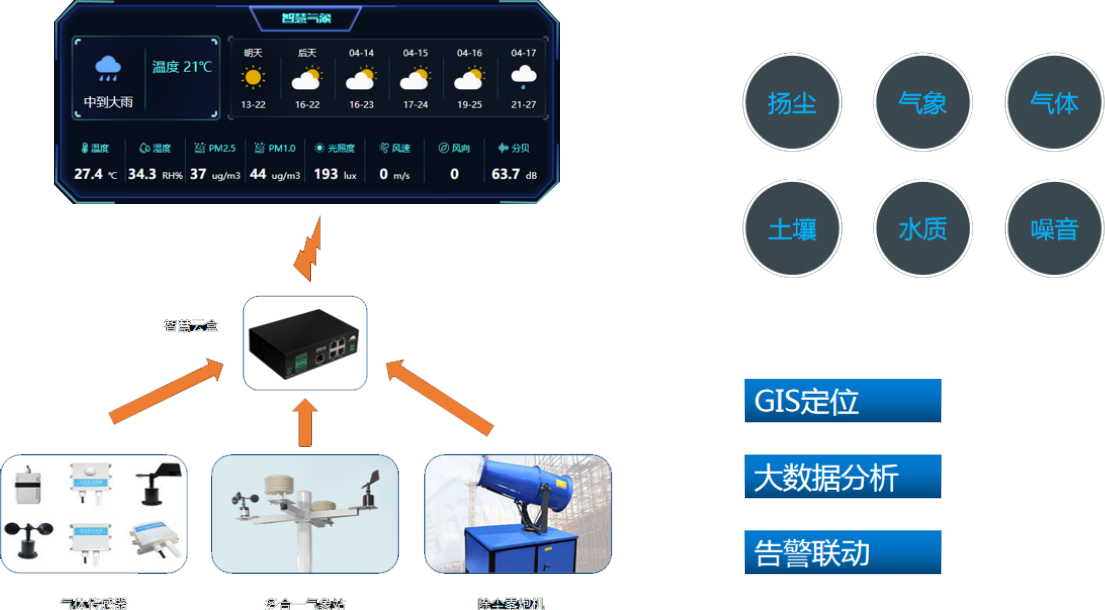

Environmental monitoring system
+
The monitoring data of various sensors are transmitted to the cloud platform through communication control equipment, achieving real-time automatic collection, analysis and storage of data such as PM2.5, PM10, noise, temperature and humidity. Manager
Personnel can query and analyze real-time and historical environmental monitoring data through the platform.
One-click alarm
+
One-click alarm
+
The one-button alarm system, also known as the emergency rescue system, integrates a 2-megapixel high-definition camera, supports the central call front end, and offers functions such as two-way voice intercom and broadcasting, enabling immediate alarm and assistance. The pinhole-type lens is relatively concealed and hard to detect, facilitating monitoring. The casing is made of metal to enhance the explosion-proof level of the equipment.
Under the condition that the police force remains unchanged, provide faster and more effective services to the society, effectively deter criminals and stabilize public sentiment, and play a positive role in maintaining social stability.

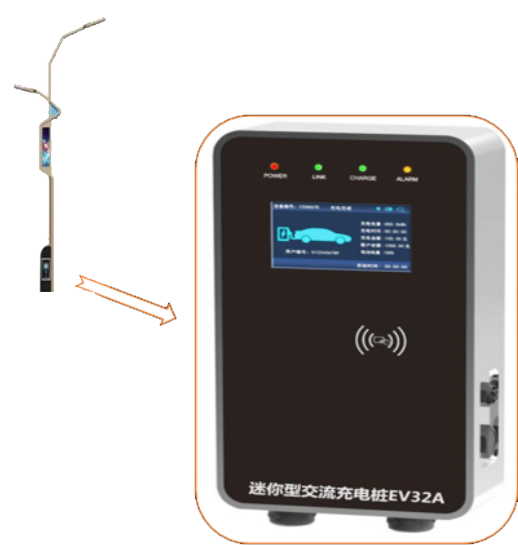

Charging pile system
+
The monitoring data of various sensors are transmitted to the cloud platform through communication control equipment, achieving real-time automatic collection, analysis and storage of data such as PM2.5, PM10, noise, temperature and humidity. Manager
Personnel can query and analyze real-time and historical environmental monitoring data through the platform.
Solve the problem of difficult charging for new energy vehicles in roadside parking Spaces, parks and residential areas, as well as the lack of power for digital devices such as mobile phones, which cause inconvenience in travel and inability to continue work and other embarrassing situations. The brand-new APP offers online network coverage and enables convenient online payment.
The adoption of ARM chips with high stability and high performance, combined with powerful system resources, makes this product more stable and reliable.
The display interface is a large-sized LCD liquid crystal screen, which shows rich information. The high-resolution displayed content is clear and rich, and the interface is beautiful.
Overvoltage and undervoltage protection, overcurrent protection for AC input and output, output current limiting, overcurrent protection, over-temperature protection, D-level lightning protection, etc.
The panel is made of organic glass, and the casing is formed in one piece by cast aluminum. The whole machine is designed to be rainproof and dustproof, with a protection level of IP54, meeting the requirements for outdoor operation.
Other extended functions
+
5G micro base stations, RFID positioning function, manhole cover detection function, trash can monitoring function, cable anti-theft function, etc.
